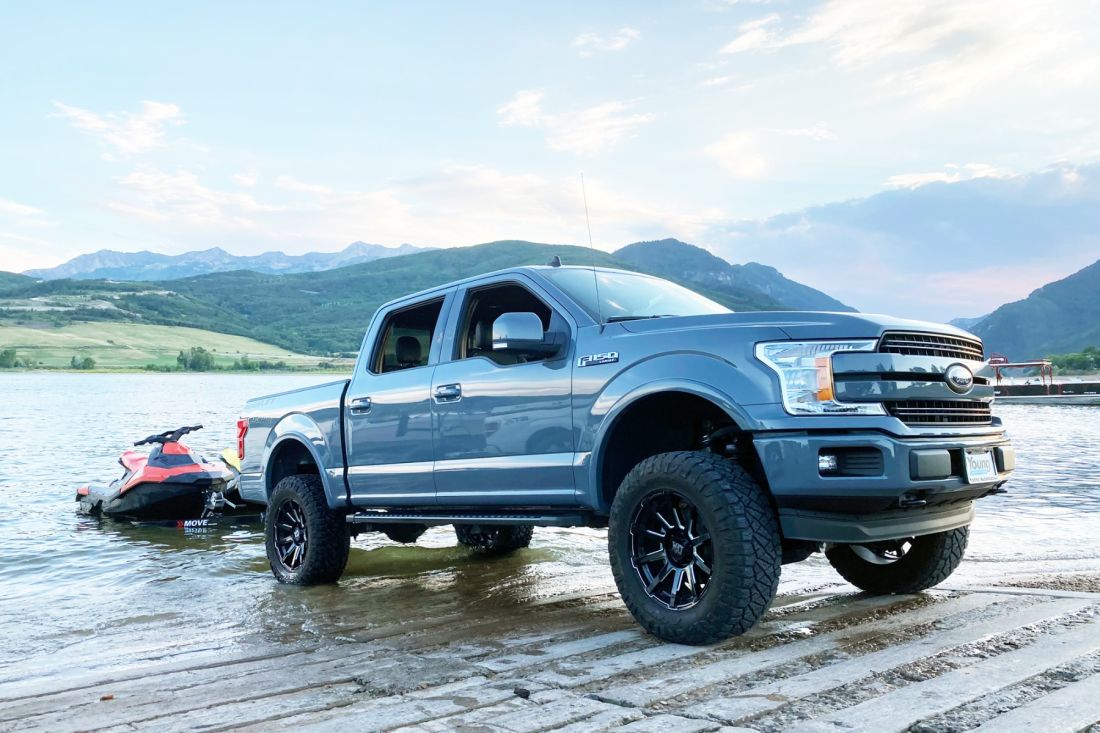

6'' MAX3.3 Suspension Systems 2015-2020 Ford F-150
ReadyLIFT is excited to announce our all-new 6” MAX3.3 Suspension Systems for the 2015-2020 Ford F-150s. The MAX3.3 Suspension Systems deliver first-class ride and handling with plenty of tire clearance and a great-looking lifted stance in our all-new family of high-performance big lift suspension systems for Ford F-150 4WD models.
Features and Benefits:
- 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.
- 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride
- 8-Position Micro Adjust Dial offers refined damping adjustments
- Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.
- DOM tube steel upper control arms with Proprietary Heavy-Duty High-Angle Ball Joint.
- Heavy-duty fabricated steel components utilizing 3/16″ and 1/4″ steel plate
- Full-coverage differential skid plate constructed from 3/16″ steel plate
- Includes HD alignment cam bolts for proper front-end alignment
- Tire size 295/65R20 with a 20×9” with a 0 offset wheel
- Max tire with trimming 37×12.50” with a 20×9” with a 0 offset wheel
*Does not fit vehicles equipped with CCD, 2WD, and Raptor.
ReadyLIFT is excited to announce our all-new 6” MAX3.3 Suspension Systems for the 2015-2020 Ford F-150s. The MAX3.3 Suspension Systems deliver first-class ride and handling with plenty of tire clearance and a great-looking lifted stance in our all-new family of high-performance big lift suspension systems for Ford F-150 4WD models.
Features and Benefits:
- 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.
- 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride
- 8-Position Micro Adjust Dial offers refined damping adjustments
- Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.
- DOM tube steel upper control arms with Proprietary Heavy-Duty High-Angle Ball Joint.
- Heavy-duty fabricated steel components utilizing 3/16″ and 1/4″ steel plate
- Full-coverage differential skid plate constructed from 3/16″ steel plate
- Includes HD alignment cam bolts for proper front-end alignment
- Tire size 295/65R20 with a 20×9” with a 0 offset wheel
- Max tire with trimming 37×12.50” with a 20×9” with a 0 offset wheel
*Does not fit vehicles equipped with CCD, 2WD, and Raptor.
ReadyLIFT is excited to announce our all-new 6” MAX3.3 Suspension Systems for the 2015-2024 Ford F-150s. The MAX3.3 Suspension Systems deliver first-class ride and handling with plenty of tire clearance and a great-looking lifted stance in our all-new family of high-performance big lift suspension systems for Ford F-150 4WD models.
The all-new Ford F-150 6” MAX3.3 kits come with the new Falcon 3.3 Fast Adjust Dampers providing unrivaled on and offroad utilizing Falcon’s exclusive Fast Adjust technology. The Falcon 3.3 Fast Adjust Dampers have the ability to quickly adjust the ride from Soft to Firm with a quick flip of the Fast Adjust Knob, or anywhere in between using the 8-position Micro Adjust Dial. The Mico Adjust Dial is a unique feature for fine-tuning your ride easily between the primary Fast Adjust settings to create a true multi-purpose vehicle that excels in every category. Whether you are cruising to work in the morning or towing to camp in the afternoon followed by exploring in the evening – the Falcon 3.3 Fast Adjust Dampers will provide miles of smiles.
The new ReadyLIFT Ford F-150 6” kits are equipped with heavy-duty 1/4″ steel plate construction front and rear crossmembers that offer unmatched strength for all driving conditions. Featuring a set of durable lifted knuckles and strut spacers, you gain enough ride height to run up to 35-inch tires with the right wheel! The new 6” system includes everything necessary to correct suspension, steering, and driveline geometry to maintain on-road handling while improving strength and offroad capability. Fabricated steel 4″ tall rear block offers the correct amount of rear lift while the factory-style U-bolts aid in ease of installation. Topping off this premium suspension system is ReadyLIFT’s all-new Upper Control Arms. These new arms offer increased strength and travel, with corrected geometry and alignment for your newly lift truck.
Features and Benefits:
- 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.
- 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride
- 8-Position Micro Adjust Dial offers refined damping adjustments
- Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.
- Hard Anodized Large Bore 6061-T6 Aluminum Shock Body for impact and corrosion resistance as well as increased oil volume for consistent performance.
- VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up for reduced body roll and an overall increase in damping to reduce bottom out when pushed to the limit.
- Red Line high VI shock oil for consistent performance across all temperatures from -50F to 450F with anti-wear and lubricity agents.
- DOM tube steel upper control arms with Proprietary Heavy-Duty High-Angle Ball Joint.
- Heavy-duty fabricated steel components utilizing 3/16″ and 1/4″ steel plate
- Full-coverage differential skid plate constructed from 3/16″ steel plate
- Includes HD alignment cam bolts for proper front-end alignment
- Tire size 295/65R20 with a 20×9” with a 0 offset wheel
- Max tire with trimming 37×12.50” with a 20×9” with a 0 offset wheel
*Does not fit vehicles equipped with CCD, 2WD, and Raptor.
295/65R20 for no rub on a 9" wide wheel with 0 offset
37" Maximum tire diameter with possible trimming.
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

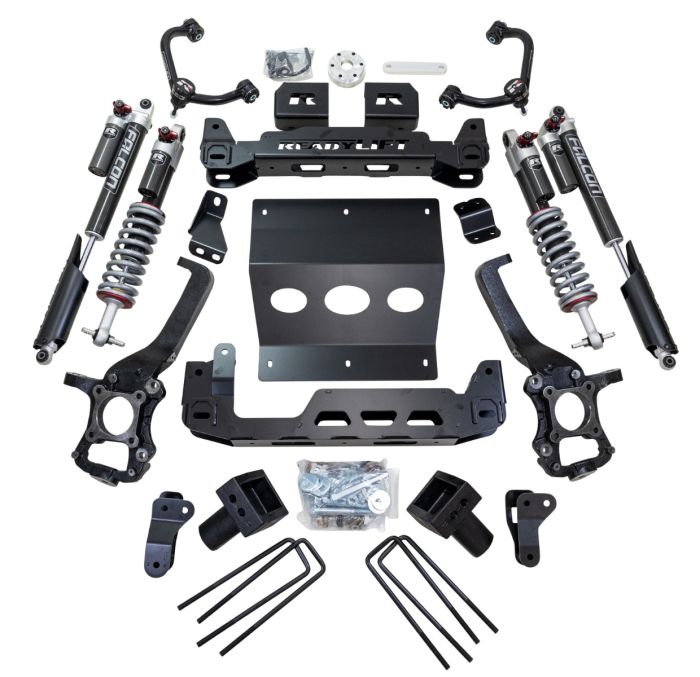

CROSSMEMBER, FRONT
CROSSMEMBER, REAR
SKID PLATE
CROSS MEMBER BOX
DIFFERENTIAL DROP, DRIVER
DRIVER DIFFERENTIAL SUPPORT BRACKET
DIFFERENTIAL DROP, PASSENGER
PASSENGER DIFFERENTIAL SUPPORT BRACKET
SWAY BAR DROP DOWN BRACKETS - LEFT (DRIVER)
SWAY BAR DROP DOWN BRACKETS - RIGHT (PASSENGER)
MACHINED FRONT DRIVE LINE SPACER
F-150 CAST KNUCKLE, DRIVER
KNUCKLE BOX
F-150 CAST KNUCKLE, PASSENGER
KNUCKLE BOX
REAR BRAKELINE DROP BRACKET
16MM Carrier Bearing Spacer
Driver Block
Passenger Block
U Bolt Kit
ALIGNMENT CAM BOLT KIT
F-150 FALCON 3.3 COILOVER FR LFT
F-150 FALCON 3.3 COILOVER FRT RT
F-150 6" REAR SHOCK - FALCON
DIFF BREATHER VENT
FRONT BRAKELINE SUPPORT BRACKET
REAR E-BRAKE DROP BRACKET
F-150 UPPER CONTROL ARM KIT
HARDWARE
SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
INSTALLATION ALIGNMENT NOTE: Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.
INSTALLATION HEADLAMP AIM NOTE: In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation. You may incur additional costs to adjust the headlamp system.
INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE: If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS. You may incur additional costs to adjust ADAS systems.
Driver Rear Control Arm Pocket will need to be trimmed to offer clearance for the rear crossmember.
