3" SST2.1 Suspension System With Falcon 2.1 Struts/Shocks - Toyota Tundra 2022-2024
Ready to elevate Tundra’s to a whole new level? The all-new ReadyLIFT 62-52420 3" SST2.1 Suspension System is here to redefine what’s possible. Designed for 2022-2024 Toyota Tundra’s, this premium lift kit delivers an aggressive stance without sacrificing the factory ride quality you rely on.
• Falcon 2.1 Series Suspension System – A ride quality upgrade you can feel every mile.
• HD Full-Coverage Front Skid Plate – Protects your differential and engine without compromising service access.
• 1.5" Upper Control Arms – Corrected ball joint angles for maximum articulation.
• High-Angle CV Axles – Engineered for maximum suspension travel, reduced vibration, and superior durability.
• Custom Steering Stops – Ensures the integrity of your CV axle under all suspension cycles.
• Fit up to 35x12.50 tires with 18"x9" wheels and +12mm offset.
Note: This kit is not compatible with Tundra’s equipped with air ride, TRD Pro, or AVS systems.
- California Residents: Prop 65 WARNING
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
Ready to elevate Tundra’s to a whole new level? The all-new ReadyLIFT 62-52420 3" SST2.1 Suspension System is here to redefine what’s possible. Designed for 2022-2024 Toyota Tundra’s, this premium lift kit delivers an aggressive stance without sacrificing the factory ride quality you rely on.
• Falcon 2.1 Series Suspension System – A ride quality upgrade you can feel every mile.
• HD Full-Coverage Front Skid Plate – Protects your differential and engine without compromising service access.
• 1.5" Upper Control Arms – Corrected ball joint angles for maximum articulation.
• High-Angle CV Axles – Engineered for maximum suspension travel, reduced vibration, and superior durability.
• Custom Steering Stops – Ensures the integrity of your CV axle under all suspension cycles.
• Fit up to 35x12.50 tires with 18"x9" wheels and +12mm offset.
Note: This kit is not compatible with Tundra’s equipped with air ride, TRD Pro, or AVS systems.
Unleash the Next Level in Lifted Performance with ReadyLIFT’s All-New 3” SST2.1 Suspension System for 2022+ Toyota Tundra!
ReadyLIFT is proud to introduce the 62-52420 3” SST2.1 Suspension System, engineered to elevate your 2022+ Toyota Tundra’s performance, style, and capabilities to unprecedented levels. This cutting-edge suspension kit redefines what’s possible for a lifted Tundra, delivering a bold stance, superior handling, and the rugged durability ReadyLIFT is known for.
At the heart of this system are Falcon 2.1 Series front replacement struts and rear shocks, designed to transform your Tundra into the ultimate street and trail performer. With enhanced ride quality, improved handling, and the ability to fit up to 35x12.50 tires, this premium lift not only looks aggressive, but it’s also built to conquer any terrain.
For the first time, we’re including an all-new CV Axle Kit, purpose-built to handle the demands of extreme 4WD conditions. Engineered for durability and reliability, these high-angle CV axles ensure your Tundra stays ready for anything—whether it’s a rugged trail or a weekend getaway.
What Sets the 62-52420 SST2.1 Suspension System Apart?
Game-Changing Features That Deliver Real Performance:
- Effortless Bolt-On Installation: No cutting, no hassle — just a straightforward upgrade.
- Falcon 2.1 Series Suspension System: Feel the difference on streets and trails with superior ride quality and handling.
- HD Full-Coverage Front Skid Plate: Protects your differential and engine while maintaining service access.
- 1.5" Upper Control Arms: Optimized ball joint angles for maximum suspension articulation and durability.
- High-Angle CV Axles: Designed for maximum travel, reduced vibration, and unmatched reliability.
- Custom Steering Stops: Maintain CV axle integrity through all suspension cycles.
- Aggressive Fitment: Supports 35x12.50 tires on 18"x9" wheels with +12mm offset.
- Lifted Look with Factory-Like Comfort: Elevate your truck’s stance without compromising ride quality.
Built for Adventure, Made to Last
Whether you’re carving through backcountry trails or cruising through the city, the #62-52420 SST2.1 Suspension System delivers the performance, style, and reliability you demand. It’s not just a lift kit—it’s a statement.
Important Compatibility Note:
This kit is not compatible with Tundra models equipped with Load-leveling Rear Height Control Air Suspension, TRD Pro Off-Road Suspension, or Adaptive Variable Suspension (AVS) systems.
Upgrade Your Toyota Tundra Today!
With the 62-52420 SST2.1 Suspension System, your Tundra is ready to stand taller, drive stronger, and take on whatever the road or trail throws your way. Experience the ReadyLIFT difference today and transform your ride into the ultimate lifted machine!
35" Maximum tire diameter
35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

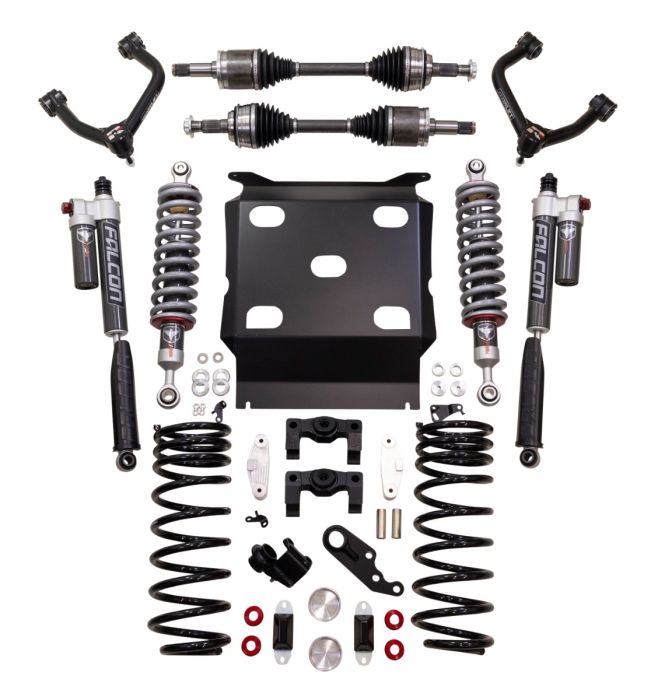

1.08 ODX.54IDX.188 L RR SHOCK CENTERING RING QTY 2
22-UP TUNDRA PREMIUM REAR RIGHT QTY 1
22-UP TUNDRA PREMIUM REAR LEFT QTY 1
22-up Tundra Premium Front Shock QTY 2
24 TACOMA, DIFF DROP SPCR 4 QTY 1
1.52" OD x 0.85" ID Polyurethane Bushing QTY 4
0.87" OD x 0.56" ID x 2.65" Crush Sleeve QTY 2
End Link Spacer QTY 2
Brake Line Relocation Bracket Right Hand Side (Pass) QTY 1
Brake Line Relocation Bracket Left Hand Side (Driver) QTY 1
TUNDRA 0.55" FBSE QTY 2
HARDWARE PACK FOR 62-52420 QTY 1
REAR BRAKE LINE RELOCATION BRACKET QTY 1
REAR BRAKE LINE SPACER QTY 4
TUNDRA REAR COIL SPRING QTY 2
TUNDRA FRONT SKID PLATE QTY 1
1.75 OUTER BUMP STOP EXTENSION QTY 2
REAR OUTER BUMP STOP QTY 2
INNER REAR BUMP STOP EXTENSION 1.5" QTY 2
CV AXLE KIT QTY 1
KNUCKLE STEERING STOP, RIGHT QTY 1
KNUCKLE STEERING STOP, LEFT QTY 1
FRONT DIFF DROP, RIGHT QTY 1
FRONT DIFF DROP, LEFT QTY 1
TUNDRA UCA, ASSEM, RIGHT QTY 1
TUNDRA UCA, ASSEM, LEFT QTY 1
SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
INSTALLATION ALIGNMENT NOTE: Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.
INSTALLATION HEADLAMP AIM NOTE: In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation. You may incur additional costs to adjust the headlamp system.
INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE: If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS. You may incur additional costs to adjust ADAS systems.
Have a certified mechanic do it for you!
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
TIRE/WHEEL SIZING GUIDE
