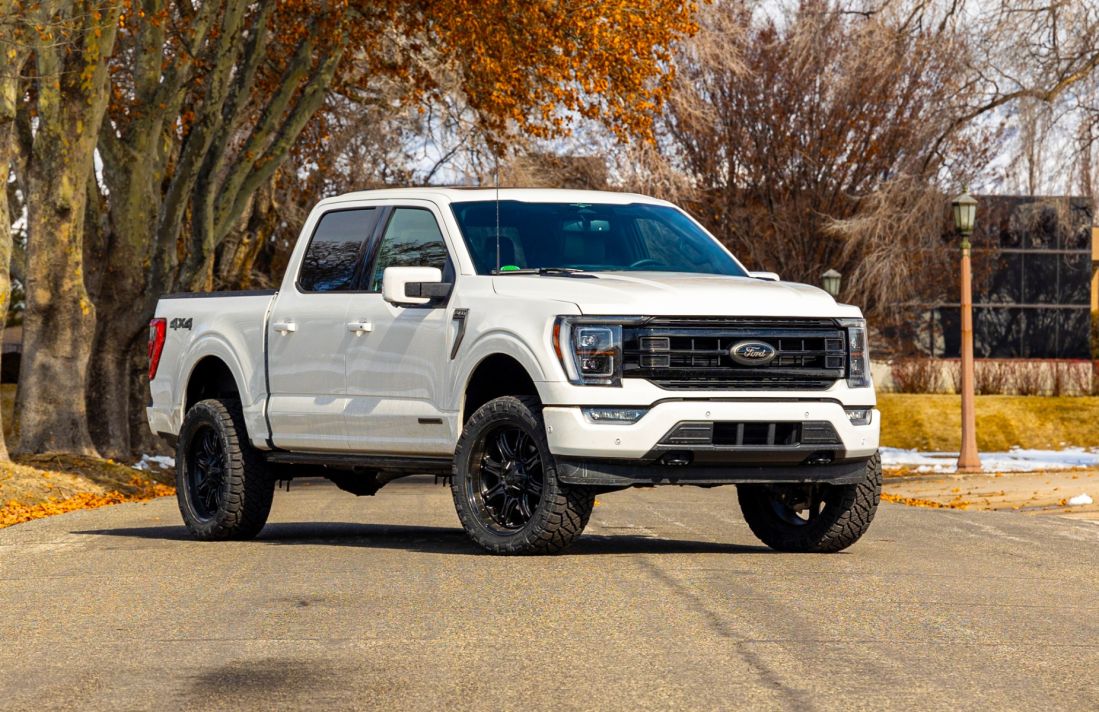

3.5" SST2.1 Suspension System - Ford F-150 4WD 2021-2024

ReadyLIFT now offers a new premium 3.5" SST2.1 series lift kit for the 2021-2024 Ford F-150 4WD! The 62-21440 SST2.1 Lift Kit provides a great lift solution to achieve a mild yet aggressive lifted stance while maintaining important factory ride and handling characteristics. The new 3.5” lift kit incorporates our all-new Falcon 2.1 series front replacement strut and rear shock system that delivers an incredible ride quality and opens the wheel wells up to increased wheel and tire sizes with the 3.5” front and a 2.5” rear lift over the stock ride height.

The Falcon 2.1 system pairs front monotube struts with rear adjustable piggyback shocks. SST 2.1 allows adjustment to the suspension – select a tune for daily, sport, or work duties with Falcon 2.1 Sport Tow/Haul Shocks. The easy-to-use 3-position Fast-Adjust settings include Sport/daily, Moderate Tow/Haul, and Heavy Tow/Haul.  Falcon Performance Shocks improve performance and comfort regardless of the terrain. The versatility of these systems makes them ideal for daily driving, off-road excursions, and tow/haul duties. To complement the advanced Falcon strut/shock architecture, our engineers also developed upgraded DOM tube steel upper control arms with corrected ball joint angles for greater strength and articulation, complete with (4) alignment cam plates. The ReadyLIFT 3.5" SST2.1 Kit is exclusively engineered for the new 2021-2024 Ford F-150 4WD pickups. The maximum size tire/wheel fitment for use with this kit (without trimming) is a 295/60R20 on a 9” wide and +18 offset wheel.

Features and Benefits:

·         3.5” front lift with a 2.5” rear blocks.

·         Allows for up to 295/60R20 on a 9" wide and +18 offset.

·         Fit up to a 35"x12.5" wheel 20"x9" with 0 offset with minor trimming.

·         DOM tubular steel Upper Control Arms with market-best heavy-duty high-angle proprietary ball joint.

·         Unmatched curb-appeal and rugged mid-size truck capability delivered in an affordable yet innovative Smart Suspension Technology “no-cut” lift kit.

·         “High-Value Performance” is the driving force behind our new vehicle-specific Falcon shocks.

·         Falcon shock absorber systems are tuned for comfort with predictive handling, control, and stability on-road and offroad.

·         Rear adjustable 3-position Falcon 2.1 shocks tune for daily, sport, or work duties.

·         Vehicle-specific performance-tuned Falcon 2.1 dampers on all four corners.

o   Improved dynamic roll control and low-speed damping.

o   Dramatic improvement in on-road comfort and off-road performance.

o   Optimized fitment for unobstructed suspension travel and articulation.

o   6061-T6 aluminum alloy shock body resists Impact to protect internal components.

o   Smooth-honed internal shock body surface for long-term performance.

o   3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling.

o   Large shaft diameter provides a wide range of adjustments on adjustable shocks.

o   Hard anodized 6061-T6 aluminum alloy billet piston.

o   1-piece Teflon bronze piston wear band w/ O-ring.

* NOTE: Not compatible with Ford BlueCruise.  Some lift heights may vary depending on factory packages.

35x11.50 or 295/60-20 Max tire size on a 9" wide wheel with +18 offset

35"x12.5" wheel 20"x9" with 0 offset Some minor trimming may be necessary depending on the tire design.

Factory 20x8.5 +44 offset wheels can be used with tires that are narrower than 11.5"

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

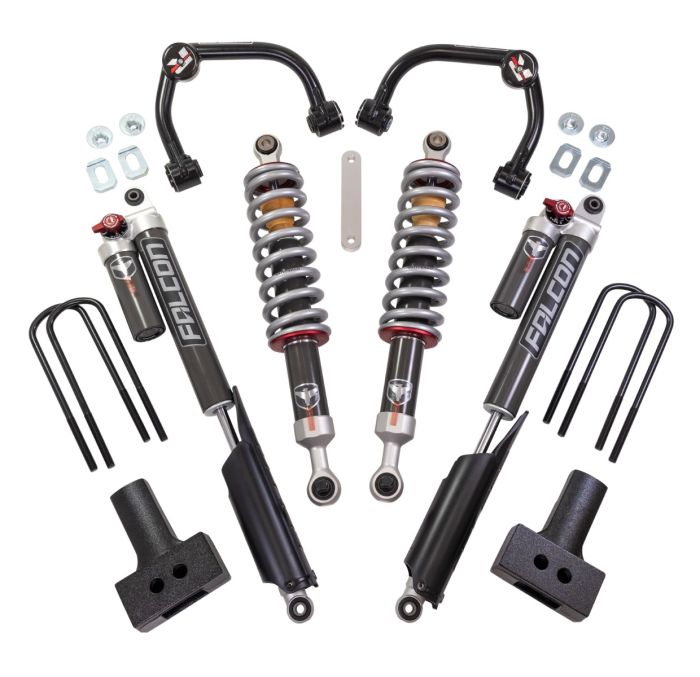

FALCON 2.1 FRONT DAMPER

FALCON (TOW/HAUL) REAR DAMPER

UPPER CONTROL ARM, ASSEM, LEFT

UPPER CONTROL ARM, ASSEM, RIGHT

ALIGNMENT CAM

ALIGNMENT PLATE

2.5" FLAT BLOCK (CAST)

CARRIER BEARING DROP

M14 - 1.5 x 305MM x 84MM U-BOLT (SEMI ROUND) (12.0" LONG, 3.31" ID, 4" THREAD LENGTH)

M14 HEAVY FLAT WASHER

M14 - 1.5 BARREL NUT

HARDWARE PACK FOR
