6" Lift Kit - Toyota Tundra TRD Pro 2015-2021

TRD Pro Plus 6! ReadyLIFT 6" Complete Lift Kit for 2015-2021 Toyota Tundra TRD Pro Trucks! ReadyLIFT delivers a great new Pro Plus 6 lift kit that will provide 6" of front lift to TRD Pro Tundra trucks that come factory with 2" of front lift. That equals the same height as our 8" lift kit on a standard Tundra. And even better, this kit allows you to retain use of the factory Bilstein/Fox coil-overs and reservoir rear shocks! That's right, this great system retains use of ALL of the factory TRD Pro suspension components. Note: This system will only work with factory 20" wheels - will not work with some factory 18" wheels. Aftermarket wheels okay with correct offset. Note: For use only on 2015-2021 Tundra TRD Pro w/ Bilstein/Fox coilover shocks. Note: Will not work with the TRD rear swar bar option. Note: Cannot use the factory front skid plate. This 44-5860 Pro Plus 6 inch lift kit for Tundra trucks is packed full of the same great features found in our standard 8" lift kit! Starting with our ultra strong laser cut, CNV bent, welded and boxed sub frame drop assemblies that not only keeps your suspension geometry where it is supposed to be, but also increases your ground clearance 2" over the competition! Our unique and precision-designed iron knuckles feature CNC machining to guarantee precise fit while allowing for retention of the factory tie rods - that means no cutting or replacing your tie rods - ever! The 6 inches of lift is created by our innovative and industry-leading offset top mount spacer design along with the addition of a CNC machined billet Aluminum strut top hat replacement. These strong steel spacers attach to the factory Bilstein/Fox coilover/strut - resulting in a factory ride - while positioning the suspension in such a way as to not increase track width. What does that mean? It means your front tires won't still out further than your rear tires like with other kits. AND it means you can run your stock 20" wheels and use your spare tire if needed. This kit has been engineered around developing and offering a top quality lift solution for Tundra TRD Pro owners. ReadyLIFT's sub assembly design features a truly innovative approach to dropping the differential. Our diff drop kit is engineered for easy installation - easiest on the market - and correctly positions the differential to maintain great CV axle and drive line angles. Our system is built around maintaining correct alignment and geometry specifications. With our 44-5860 Pro Plus 6" lift kit you can rest assured you will not be wearing out those new tires. For the rear this kit includes our time-tested OEM-style cast iron rear lift blocks and longer U-bolts with hardware. Additionally, we also include bump stop extensions all the way around as well as sway bar frame mount brackets to keep the front sway bar in a factory position. To keep you driving on those high-quality Bilstein/Fox reservoir shocks, we include our popular shock stem extensions that adjust the installed length of the shock without altering the compressed and extended length. All of this contributes to an excellent driving and handling suspension system that truly compliments your Tundra TRD Pro truck! How big of a tire can you run? We recommend 37" as the maximum on a 9" wheel with a +12 offset for the least chance of rubbing. (Front mud flaps may need to be removed depending on the tread design of the tire.)

37" Maximum tire diameter

37x12.50 for no rub on a 9" wide wheel with +12 offset

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

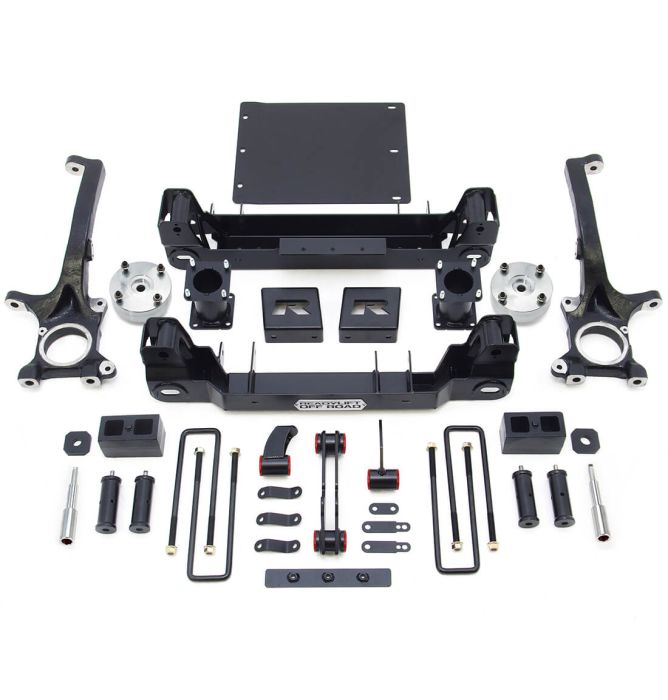

(2) Iron ductile knuckles engineered to allow for use of the factory tie rods

(2) top mount strut extensions

(2) strut spring preload spacers

(2) upper spring compression spacers

(2) laser cut and boxed steel dropped crossmembers

(2) sway bar drop spacers

(4) bump stop extensions

OEM style cast iron rear lift blocks with new u-bolts

Complete easy-to-install differential drop mount system

(1) skid plate

(2) rear Bilstein shock stem extensions
