4.5''F / 2.5''R SST Lift Kit - Dodge Ram HD 2500 4WD 2019-2024 New Body)

$499.95
In stock
SKU
69-1945

Max Lift: 4.5"

Maximum Tire Dia: 37" 4WD Only

4.5" Front Lift - 2.5" Rear Lift.

Now includes front and rear track bar brackets. 2019-2024 2500 4WD only.

Not compatible with Auto-Ride. For use ONLY with the new body style 2500 HD 4WD trucks with rear coil springs. For Diesel Engine trucks.  Not Compatible with Power Wagon.  Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

Special Note RAM TSB 03-003-23:  Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info.  Recommended driveline for the 68RFE Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

  • ReadyLIFT provides a great bolt-on lift solution for getting maximum bolt-on lift suitable for running negative offset wheels with up to a 37" tall tire. The all-new 69-19450 4.5" SST Lift Kit provides 4.5" of front lift and 2.5" of rear lift and supersedes our previous 69-1945 lift kit which will be discontinued. This kit includes necessary front radius arm drop brackets and now includes both front/rear track bar relocation bracket to ensure perfect suspension geometry to maintain that factory ride. Kit also includes front/rear shock extensions, bump stop extensions, longer sway bar end links and front sway bar frame side spacers. 69-19450 is a great no-modifications required lift kit that will get your new 2019-UP Ram 2500 HD 4WD lifted up nicely while keeping the factory ride and handling characteristics.

    The 69-19450 4.5" lift kit easily allows for up to 37" tall tires and can accept conservative negative offset wheels with little to no trimming required. The 69-19450 4.5" SST Lift Kit provides 4.5" of front lift and 2.5" of rear lift with heavy-duty fabricated steel coil spring spacers. This kit includes necessary front radius arm drop brackets and replacement front track bar relocation bracket to ensure perfect suspension geometry to maintain that factory ride. Kit also includes front/rear shock extensions, bump stop extensions, longer sway bar end links and front sway bar frame side spacers. 69-19450 is a great no-modifications required lift kit that will get your new 2019-UP Ram 2500 HD 4WD up nice and high while keeping the factory ride and handling characteristics.

    Not for use with gas engine, Power Wagon or snow prep package or ambulance package equipped vehicles.

  • Max - 37 on up to a -18 offset wheel.

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • Laser cut heavy-duty steel front/rear coil spring spacers

    Radius arm drop brackets

    Front track bar relocation bracket

    Rear track bar relocation bracket

    Longer sway bar end links

    Bump stop extensions

    Sway bar drop brackets

    Front/Rear shock extensions.

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 6.5 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!



Quick Overview

Max Lift: 4.5"

Maximum Tire Dia: 37" 4WD Only

4.5" Front Lift - 2.5" Rear Lift.

Now includes front and rear track bar brackets. 2019-2024 2500 4WD only.

Not compatible with Auto-Ride. For use ONLY with the new body style 2500 HD 4WD trucks with rear coil springs. For Diesel Engine trucks.  Not Compatible with Power Wagon.  Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

Special Note RAM TSB 03-003-23:  Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info.  Recommended driveline for the 68RFE Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.

Details

ReadyLIFT provides a great bolt-on lift solution for getting maximum bolt-on lift suitable for running negative offset wheels with up to a 37" tall tire. The all-new 69-19450 4.5" SST Lift Kit provides 4.5" of front lift and 2.5" of rear lift and supersedes our previous 69-1945 lift kit which will be discontinued. This kit includes necessary front radius arm drop brackets and now includes both front/rear track bar relocation bracket to ensure perfect suspension geometry to maintain that factory ride. Kit also includes front/rear shock extensions, bump stop extensions, longer sway bar end links and front sway bar frame side spacers. 69-19450 is a great no-modifications required lift kit that will get your new 2019-UP Ram 2500 HD 4WD lifted up nicely while keeping the factory ride and handling characteristics.

The 69-19450 4.5" lift kit easily allows for up to 37" tall tires and can accept conservative negative offset wheels with little to no trimming required. The 69-19450 4.5" SST Lift Kit provides 4.5" of front lift and 2.5" of rear lift with heavy-duty fabricated steel coil spring spacers. This kit includes necessary front radius arm drop brackets and replacement front track bar relocation bracket to ensure perfect suspension geometry to maintain that factory ride. Kit also includes front/rear shock extensions, bump stop extensions, longer sway bar end links and front sway bar frame side spacers. 69-19450 is a great no-modifications required lift kit that will get your new 2019-UP Ram 2500 HD 4WD up nice and high while keeping the factory ride and handling characteristics.

Not for use with gas engine, Power Wagon or snow prep package or ambulance package equipped vehicles.

Tire Fitment

Max - 37 on up to a -18 offset wheel.

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

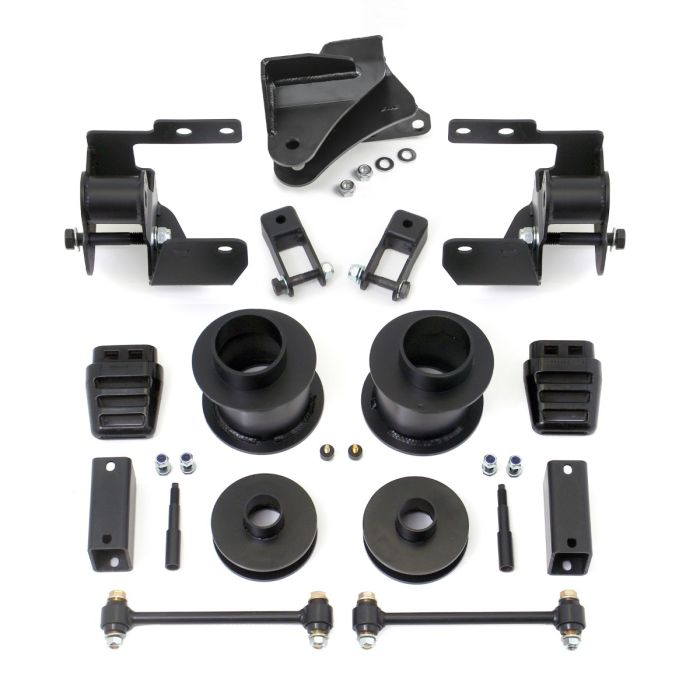

Kit Components

Laser cut heavy-duty steel front/rear coil spring spacers

Radius arm drop brackets

Front track bar relocation bracket

Rear track bar relocation bracket

Longer sway bar end links

Bump stop extensions

Sway bar drop brackets

Front/Rear shock extensions.

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 6.5 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!

Additional Information
