3.5" SST Lift Kit - Ford F-150 2015-2020

$899.95
In stock
SKU
69-2300

Fits 2015-2020 Ford F150 2WD/4WD with 1 and 2 piece driveshaft. Includes strong tubular steel Control Arms with heavy duty ball joints. Includes OEM style rear blocks for correct driveshaft angle. Solid Mount and even load distribution Will not deform or change shape No Cutting of OEM Parts or Welding Maintains Factory Ride If it needs it‚ Its in the box Allows for up to 35" tall tires. Limited Lifetime Warranty.

NOTE: Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package". Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
  • New - now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction. The ReadyLIFT 3.5" SST Lift Kit is developed to give 2015-2020 F-150 owners a packaged front/rear lift option that lifts the front of the vehicle 3.5" with 2" in the rear. This creates a popular overall lifted stance that isn't too high, but high enough to allow for 35x11.50 tires. These lift systems capitalize on the popularity of our tubular control arm design SST lift kits while incorporating many great advanced features. AND they are super easy to install! Like many of our popular lift kit systems, these new SST lift kits are centered around our DOM tubular steel Upper Control Arms. Crafting the right arm for the job was critical in the development of this kit design. Our team produced a superior arm that includes a 14-degree ball joint cup to insure proper geometry and alignment. This translates into long tire life as well as excellent handling. Each arm includes our proprietary ReadyLIFT ball joint - the same heavy duty ball joint used in our 3/4-ton truck lift kits. And each arm includes new one-time grease TCT polyurethane bushings. The 3.5" of lift height is achieved using our unique offset top mount spacer design. These CNC-machined billet aerospace-grade Aluminum lift spacers feature a unique offset bolt design engineered to position the strut into the stock position. This translates into proper suspension clearance and guarantees your truck will ride like it was stock. Additionally, we include a machined billet pre-load spacer that installs between the top of the spring and the bottom of the strut hat to pre-load the spring. This also acts as a droop limiter which insures CV axles durability on 4WD models without exceeding the CV limits which works well within the OEM tolerances. To lift the rear we include OEM style 3" tall cast rear lift blocks with built in bump stop landing pads. These blocks include dual locator pins.. For trucks with a two-piece driveshaft, we also include a carrier bearing spacer - All of this contributes to an excellent driving and handling suspension system that truly upgrades your Ford F-150 truck!

    NOTE: Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package". Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.


  • 35x12.50 Max on a 9" wide wheel with +12 offset

    Some minor trimming may be necessary depending on the tire design.

    Recommended tire:

    285-50-R22

    285-65-R20

    285-75-R18

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • Includes two heavy duty DOM tubular steel control arms with corrected cup angles, heavy duty ball joints and one-time grease urethane bushings.

    Includes two CNC machined billet aluminum offset top mount strut extensions and two cnc machined billet aluminum strut spring pre-load spacers.

    Includes two 3" rear lift blocks with new longer u-bolts and hardware.

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 6 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Quick Overview
Fits 2015-2020 Ford F150 2WD/4WD with 1 and 2 piece driveshaft. Includes strong tubular steel Control Arms with heavy duty ball joints. Includes OEM style rear blocks for correct driveshaft angle. Solid Mount and even load distribution Will not deform or change shape No Cutting of OEM Parts or Welding Maintains Factory Ride If it needs it‚ Its in the box Allows for up to 35" tall tires. Limited Lifetime Warranty.

NOTE: Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package". Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.

Details

New - now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction. The ReadyLIFT 3.5" SST Lift Kit is developed to give 2015-2020 F-150 owners a packaged front/rear lift option that lifts the front of the vehicle 3.5" with 2" in the rear. This creates a popular overall lifted stance that isn't too high, but high enough to allow for 35x11.50 tires. These lift systems capitalize on the popularity of our tubular control arm design SST lift kits while incorporating many great advanced features. AND they are super easy to install! Like many of our popular lift kit systems, these new SST lift kits are centered around our DOM tubular steel Upper Control Arms. Crafting the right arm for the job was critical in the development of this kit design. Our team produced a superior arm that includes a 14-degree ball joint cup to insure proper geometry and alignment. This translates into long tire life as well as excellent handling. Each arm includes our proprietary ReadyLIFT ball joint - the same heavy duty ball joint used in our 3/4-ton truck lift kits. And each arm includes new one-time grease TCT polyurethane bushings. The 3.5" of lift height is achieved using our unique offset top mount spacer design. These CNC-machined billet aerospace-grade Aluminum lift spacers feature a unique offset bolt design engineered to position the strut into the stock position. This translates into proper suspension clearance and guarantees your truck will ride like it was stock. Additionally, we include a machined billet pre-load spacer that installs between the top of the spring and the bottom of the strut hat to pre-load the spring. This also acts as a droop limiter which insures CV axles durability on 4WD models without exceeding the CV limits which works well within the OEM tolerances. To lift the rear we include OEM style 3" tall cast rear lift blocks with built in bump stop landing pads. These blocks include dual locator pins.. For trucks with a two-piece driveshaft, we also include a carrier bearing spacer - All of this contributes to an excellent driving and handling suspension system that truly upgrades your Ford F-150 truck!

NOTE: Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package". Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.


Tire Fitment

35x12.50 Max on a 9" wide wheel with +12 offset

Some minor trimming may be necessary depending on the tire design.

Recommended tire:

285-50-R22

285-65-R20

285-75-R18

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

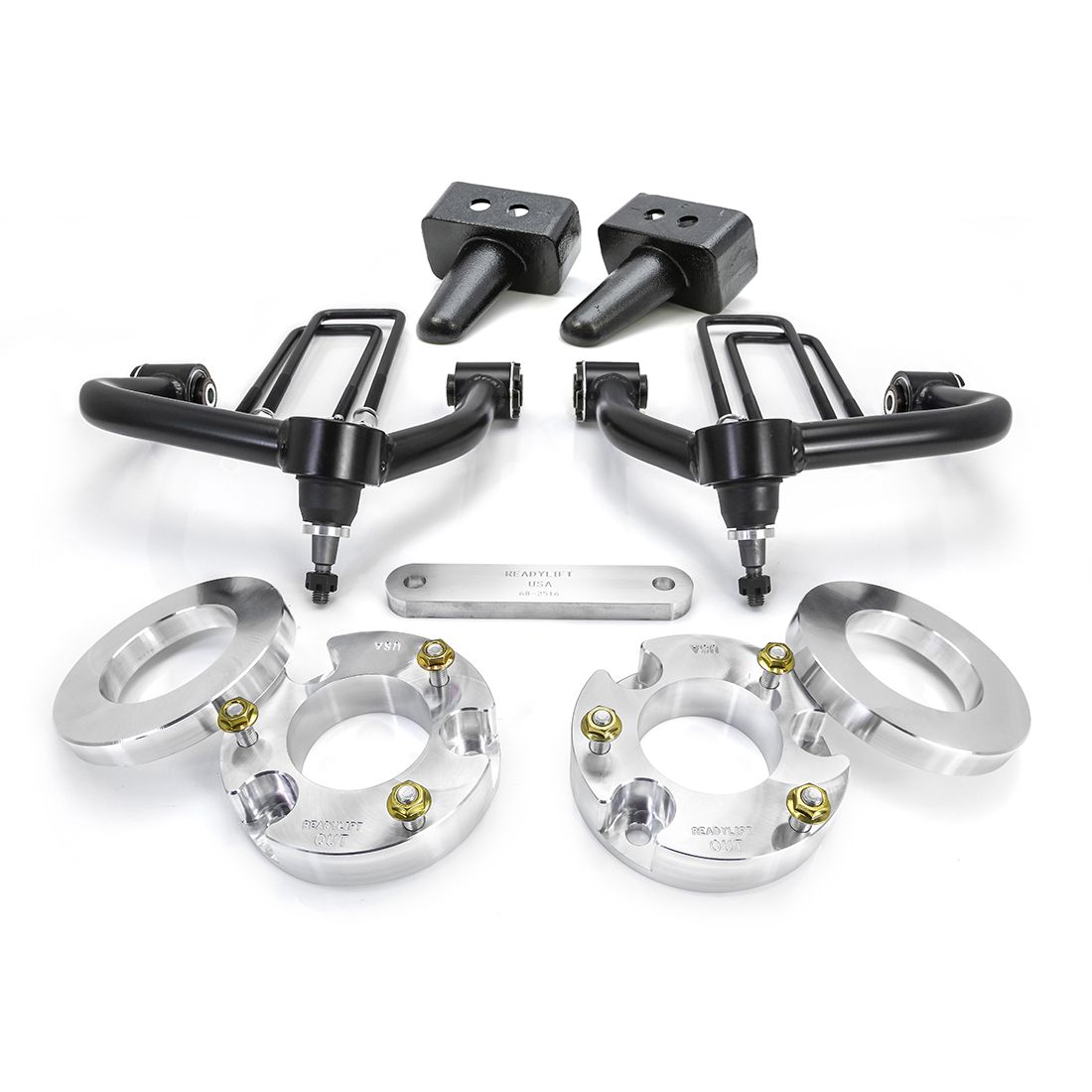

Kit Components

Includes two heavy duty DOM tubular steel control arms with corrected cup angles, heavy duty ball joints and one-time grease urethane bushings.

Includes two CNC machined billet aluminum offset top mount strut extensions and two cnc machined billet aluminum strut spring pre-load spacers.

Includes two 3" rear lift blocks with new longer u-bolts and hardware.

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 6 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!

Additional Information
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
Warning: This product can expose you to chemicals include [name of chemical], which [is/are] known to the State of California to case [cancer]/[birth defects or other reproductive harm]. For more information go to www.P65Warnings.ca.gov.
