2.5" Coil Spring Front Lift Kit W/SST3000 Shocks- Ford Super Duty Diesel 4WD 2011-2019
2.5" Coil Spring Front Lift Kit With ReadyLIFT SST3000 Performance Shocks Allows for up to 35" tall tires. Made in USA. For use on 2011-2019 4WD Ford Super Duty. Diesel Trucks Only Add On: 67-2538 Track Bar Relocation Bracket to re-center axle if needed.
- California Residents: Prop 65 WARNING
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
2.5" Coil Spring Front Lift Kit With ReadyLIFT SST3000 Performance Shocks Allows for up to 35" tall tires. Made in USA. For use on 2011-2019 4WD Ford Super Duty. Diesel Trucks Only Add On: 67-2538 Track Bar Relocation Bracket to re-center axle if needed.
The ReadyLIFT Suspension 2.5" Lift Coil Spring Front Lift Kit made to fit 2011-2019 Ford Super Duty F250/F350/F450 4WD diesel trucks gives Super Duty owners an excellent alternative for lifting the front of your truck. This great new Front Lift system will raise the front of your 2011-2019 4WD Super Duty truck 2.5".
The 46-2725 coil spring system allows for increased tire sizes and widths along with providing improved ground clearance and a more commanding view of the road. Install up to 35" tall off road tires with no problems. This new coil spring lift kit delivers a great ride ride and handling performance! The key ingredients to improving your ride are the new specially engineered coil springs teamed with ReadyLIFT SST3000 Performance Shocks!
This combination is more than just a leveling kit. This is a performance and ride enhancing kit that will really surprise you at how well it rides and performs both on and off road. The ReadyLIFT 2.5" Coil Spring Front Lift Kit System for 2011-2019 Ford Super Duty F250/F350/F450 trucks also included model-specific brake line extension brackets, our time-tested bump stop extension brackets and new front sway bar frame mount extension brackets to keep the factory sway bar where is supposed to be. If you want tough looks and a smooth but controlled ride, then you want the new 46-2725 Coil Spring Leveling Kit System. Your truck will thank you!
NOTE: Super Duty trucks, depending on factory spring rate, may experience a minor variation in lift height. Final lift height may vary from 1.5" to 2.5". NOTE: 2011-2016 F250 vehicles may require a rear block kit to achieve a level stance. NOTE: Not recommended for TREMOR editions.
35" Maximum tire diameter
35x12.50 for no rub on a 9" wide wheel with +25 offset
17" - 35X12.5R17
18" - 315/70R18
20" - 295/65R20 / 325/60R20
22" - 35X12.5R22
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

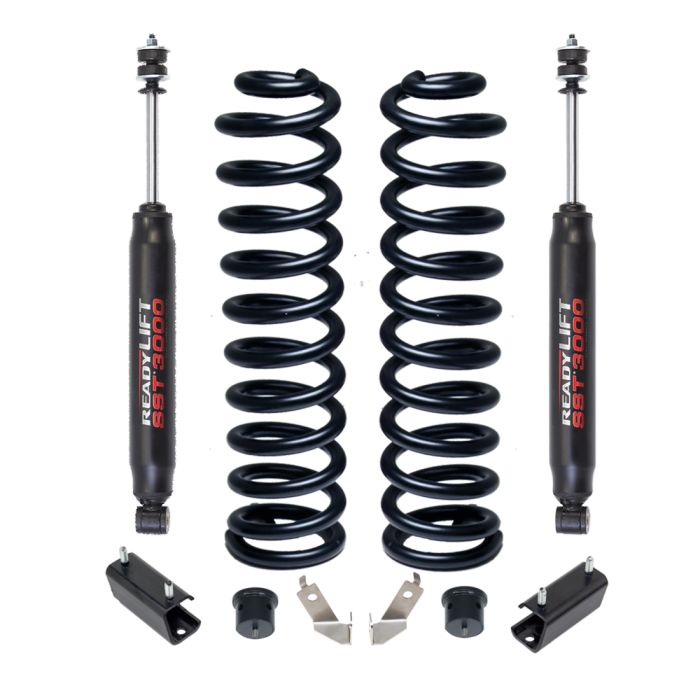

Two 2.5" lift front coil springs with SST3000 front shocks. Includes sway bar drop brackets and all necessary hardware.
SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
INSTALLATION ALIGNMENT NOTE: Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.
INSTALLATION HEADLAMP AIM NOTE: In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation. You may incur additional costs to adjust the headlamp system.
INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE: If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS. You may incur additional costs to adjust ADAS systems.
